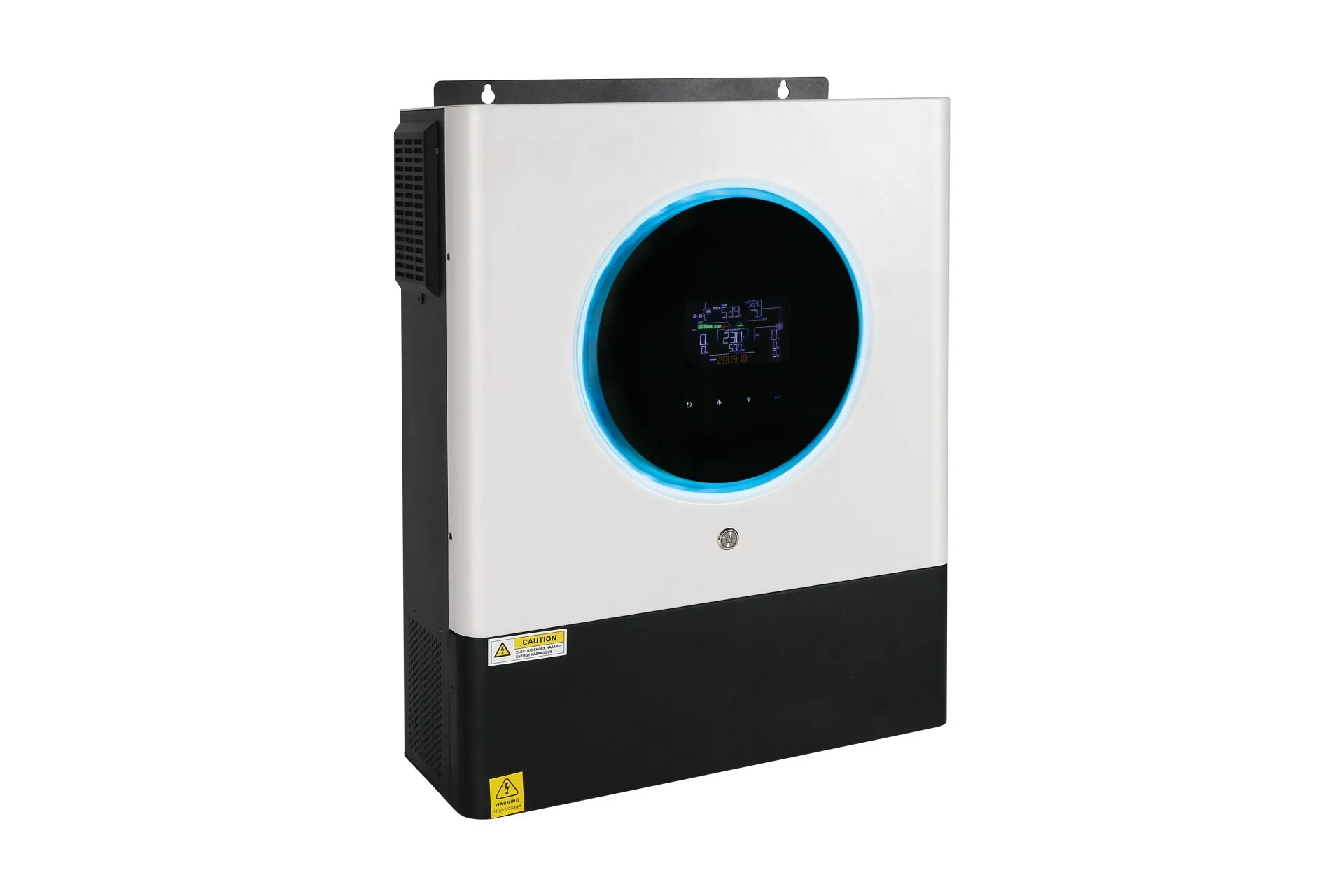

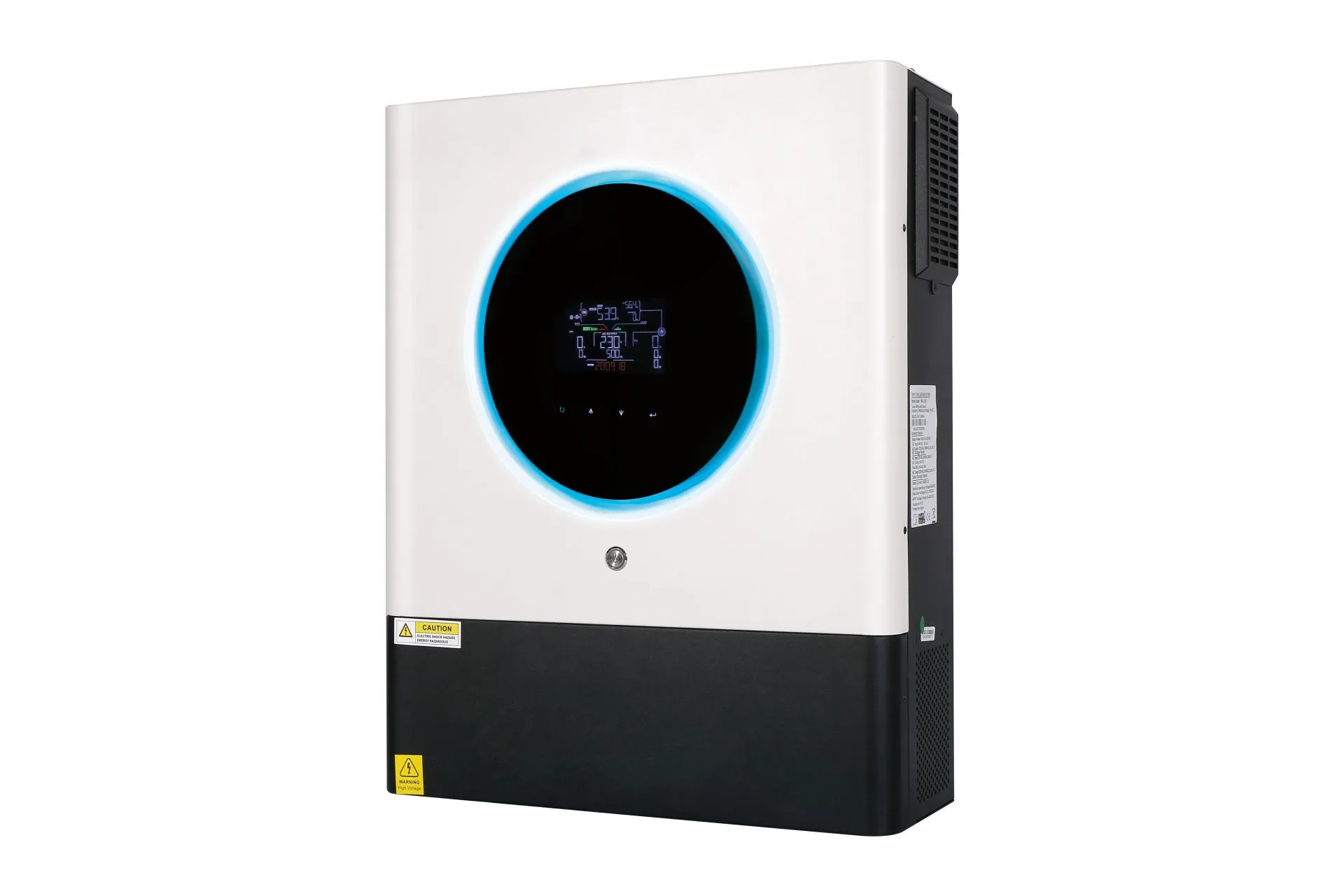

MAX-8000
The powerful MAX II is equipped with a 150A MPPT solar charger, a newly upgraded 5-inch color LCD display and touchable button. It can also access the data and record it in the inverter to facilitate tracking of the inverters operating status.
Main Features:
1. Customizable status LED rings with RGB lights.
2. Touchable buttons with large 5 colored LCD.
3. Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
4. Supports USB On-the-Go function.
5. Datalog events are stored in the inverter.
6. Reserved communication port for BMS (RS485, CAN-BUS, or RS232).
7. Replaceable fan design for ease maintenance.
8. Battery is independent design.
9. Configurable AC/PV output usage timer and prioritization.
10. Selectable high power charging current.
11. Compatible with Utility Mains or generator input.
12. Built-in DC output for DC fan, LED bulb, router and so on.
13. Parallel operation with 6 units.
Technical Specifications:
| Model | MAX II 8000 |
| Rated Power | 8000VA/8000W |
| Parallel Capability | YES,6 units |
| INPUT | |
| Voltage | 230 VAC |
| Select-able Voltage Range | 170-280VAC (For Personal Computers) 90-280VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 16000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 15ms(For Personal Computers), 20ms(For Home Appliances) |
| Waveform | Pure sine wave |
| No Load Power Consumption | <70W |
| DC Voltage | 12VDC ± 5%,100W |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar charger type | MPPT |
| Max PV Array Power | 8000W(4000Wx2) |
| MPP Range @operating Voltage | 90~450VDC |
| Max PV Array Open Circuit Voltage | 500VDC |
| Max Solar Charge Current | 150A |
| Max AC Charge Current | 120A |
| Max Charge Current | 150A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 158.4 x 502.5x 530.8 |
| Net Weight (kgs) | 20 |
| Communication Interface | USB/RS232/RS485/WIFI/Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| STANDARD | |
| Compliance Safety | CE |
